Researchers investigated the polarization-dependence of the force exerted by circularly polarized light (CPL), by performing optical trapping of chiral nanoparticles. They found that left- and right-handed CPL gave different strengths of the optical gradient force* on the nanoparticles, and the D- and L-form particles are subject to different gradient force by CPL. The present results suggest that separation of materials according to their handedness of chirality can be realized by the optical force.

* The force exerted by light toward the direction of the stronger intensity of light, when the light intensity is dependent on the position.

------------------------------------------------------------------------

Chirality is the property that the structure is not superposable on its mirrored image. Chiral materials exhibit the characteristic feature that they respond differently to left- and right-circularly polarized light (optical activity, Figure 1). When a matter is irradiated with strong laser light, optical force exerts on it. It has been expected theoretically that the optical force exerting on chiral materials by left- and right-circularly polarized light would also be different.

The research group at Institute for Molecular Science and three other universities used an experimental technique of optical trapping to observe the circular-polarization dependent optical gradient force exerting on chiral gold nanoparticles (Figure 2). Chiral gold nanoparticles have either D-from (right-handed) or L-form (left-handed) structure, and the experiment was performed using both. Although the optical gradient force acting on chiral nanoparticles was predicted theoretically, no observation of the force has been reported before. The research group succeeded in observing the optical gradient force originating from the chirality (i.e., the difference between the gradient force by left- and right-circularly polarized light), by optical trapping of the chiral gold nanoparticles. The results showed that the optical gradient force was different for D-form and L-form particles (Figure 3). They also found, from the dependence of the force on the wavelength of the light used, that there is a previously unknown effect on the mechanism of the chirality-dependent optical forces.

The present study clarified the characteristics of the circular-polarization dependent optical gradient force on the mechanics of chiral gold nanoparticles. It shows the possibility of separation of chiral materials by the optical force, which may be realized and may extend the applications by using locally confined light generated on nanostructures to trap the materials and/or by utilizing the optical force by other mechanisms.

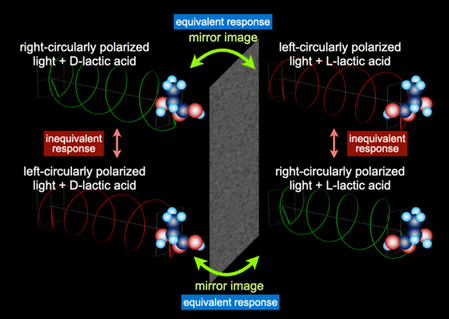

Fig. 1  Responses of chiral materials differently to left- and right-circularly polarized light

Chiral materials exhibit the characteristic feature that they respond differently to left- and right-circularly polarized light (optical activity). The response of D-form molecule to left-circularly polarized light is same as that of L-form molecule to right-circularly polarized light, and vice versa.

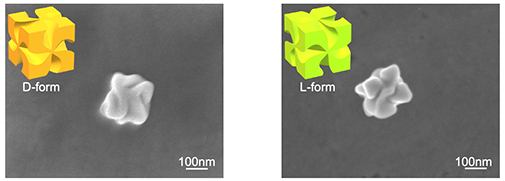

Fig. 2  Images of chiral gold nanoparticles

Scanning electron microscopy images show D- and L- form gold chiral nanoparticles. The insets visualize the three-dimensional models of the nanoparticles.

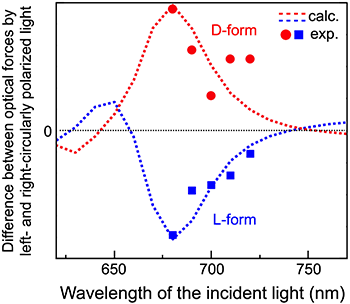

Fig. 3  Wavelength dependence of difference between the optical forces by left- and right-circularly polarized light
The plots are the experimental data and broken line are the theoretical calculation. Red and blue in the plots and line represents the D- and L-form nanoparticles, respectively. The optical gradient force was different for D-form and L-form particles.

Concept movie of the optical trapping of the chiral nanoparticles

The optical force exerting on the nanoparticle is dependent on the handedness of the circularly polarized incident light.

Information of the paper:

Journal Name: Science Advances
Title: “Optical Gradient Force on Chiral Particles”
Authors: Junsuke Yamanishi, Hyo-Yong Ahn, Hidemasa Yamane, Shun Hashiyada, Hajime Ishihara, Ki Tae Nam, and Hiromi Okamoto
DOI: 10.1126/sciadv.abq2604

Financial Supports:

Grant-in-Aid for Scientific Research from JSPS and MEXT (JP21H04641, JP21K18884, JP16H06505, and JP22H05135)

Contact Person:

Hiromi Okamoto
TEL/FAX: +81-564-55-7320
E-mail: aho_at_ims.ac.jp

Junsuke Yamanishi
TEL/FAX: +81-564-55-7322
E-mail: yamanishi_at_ims.ac.jp

*Please replace the "_at_" with @
